Steel Bar Bending Testing Machine GW-B type

Steel Bar Bending Testing Machine GW-B type

  • Min.Order Quantity: 1 Set
  • Supply Ability: 15 Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1350*1180*1100mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:  Jinan Puye Electrical and Mechanical technology
  • Model Number:  GW-B type
  • Weight: 2000.000 kg

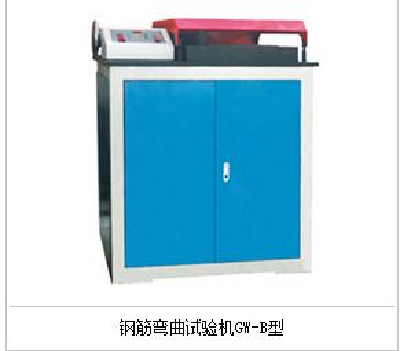

Steel Bar Bending Testing Machine GW-B type

Product introduction
GW-B type steel bending test machine is on the steel plane is reverse bend test, test equipment, the main technical parameters of

the equipment and indicators in line with YB/T51262003< reinforcement in reinforced concrete bending and reverse bending test method >(instead of GB5029-85< steel plane reverse bending test method "), GB/T1499.2-2007 (instead of GB/T1499-1998). The requirements of test equipment for steel mills and the construction unit test of rebar bending strength not less, also applies to steel construction industry to be bent in the field test and construction of a dual-purpose machine of.GW-40B/50B type is GW-2/25 type and GW2/40 type alternative products, through the replacement of different specifications of the machine parts can replace two machine, saving money for the equipment customers. Complete performance, excellent quality and has compact structure and small size, simple operation and easy to master, the bending angle of visual digital display, stable operation and low noise, the With long service life and reliable, the design is reasonable and convenient maintenance lubrication simple characteristics. More reasonable design of the device limit and wearing parts, wearing parts easily replaced, so the service life is long.

technical parameter

Product name

GW-50B

GW-40B

Project

technical index

Bar bending diameter range (three grade rebar)

Φ 6~ Φ 40mm

Φ 20~ Φ 50mm

The forward bending angle of the reinforcing bar

0 ° ~180 ° arbitrarily set

The bending angle of the reinforced bar

0 ° ~90 ° arbitrarily set

Working speed

3.7r/min

20 ° /s

Roller center distance

165mm

The work plate whose diameter

Φ 580mm

Φ 860mm

Motor power

1.5Kw

3.0Kw

Randomly equipped with a curved core set (mm)

3* Φ 6 3* Φ 8 3* Φ 10 3* Φ 12 3* Φ 14 3* Φ 16 3* Φ 18 3* Φ 20 3* Φ 22 3* Φ 25 3* Φ 28 3* Φ 32 3* Φ 36 3* Φ 40 each one

3* Φ 6 3* Φ 8 3* Φ 10 3* Φ 12 3* Φ 14 3* Φ 16 3* Φ 18 3* Φ 20 3* Φ 22 3* Φ 25 3* Φ 28 4 * Φ 32 4 * Φ 36 4 * Φ 40 5 * Φ 50 each one

O verall size

1050*760*1170mm

1350*1180*1100mm

Weight

700Kg

2000Kg

  • Size:  1350*1180*1100mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:  Jinan Puye Electrical and Mechanical technology
  • Model Number:  GW-B type
  • Weight: 2000.000 kg
