Product Details
  • Size:  1200 * 1000 * 912mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:  Jinan Puye Electrical and Mechanical technology
  • Model Number:  GGW-50J type
  • Weight: 700.000 kg

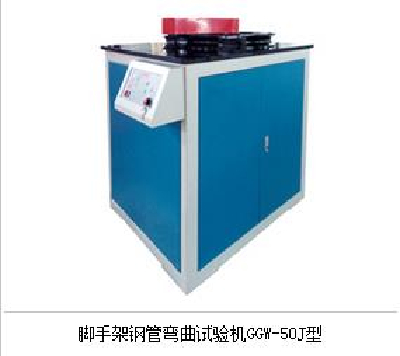

Scaffolding Steel Tube Bending Testing Machine GGW-50J type
Product introduction
GGW-50J due toΦ 48.3 scaffolding steel production specifications single diameter and pipe plane bending test more, our company jointly built Academy of science on the basis of the GB/T244-2008 ISO8491:1998 (E) < metal tube bending test method > jointly developed the "scaffolding steel pipe bending test machine, the test machine has the advantages of high efficiency, simple operation, reliable limit, service life long is scaffold steel pipe production enterprise and the quality inspection unit of the most perfect bending testing machine
technical parameter

Project

GGW-50J

Bending pipe diameter range

48.3mm

The forward bending angle of the steel tube

5°~180° arbitrary set

The reverse bending angle of the steel tube

5°~180° arbitrary set

Working speed

2r/min

Roller center distance

368mm

The work plate (sets) diameter (12 times )

48.3mm*12≈580mm

Motor power

1.5Kw

Rolling wheel radius

R26

Overall size

1200 * 1000 * 912mm

Weight

700Kg

  • Size:  1200 * 1000 * 912mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:  Jinan Puye Electrical and Mechanical technology
  • Model Number:  GGW-50J type
  • Weight: 700.000 kg
