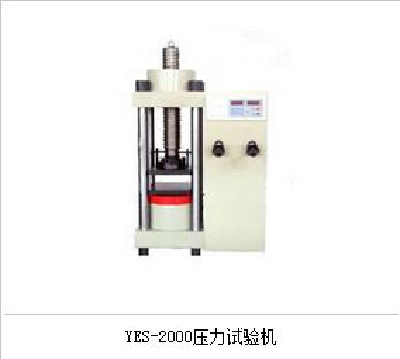

Pressure Testing Machine YES-2000
Product Description:
This test machine is mainly used in the compressive strength of brick, stone, cement concrete and other building materials, and can also be used for other materials mechanical properties test. The machine adopts hydraulic loading, electronic measurement, load with digital display, display, loading rate to maintain maximum load, and overload protection and power data hold function.
Technical parameter
Maximum test force | 2000KN |
Range and measurement range | 4%~100F.S |
Relative error of test force | ≤±1% |
Lead screw adjustment | motor-driven |
Upper and lower plate dimensions | 260 * 300mm |
Upper and lower pressing plate | 320mm |
Piston maximum stroke | 30mm |
Piston diameter | Φ250mm |
Hydraulic pump rated pressure | 40MPa |
Power supply | Three phase 0.75Kw |
Size | 820*550*1300mm |
Net weight | About 1500Kg |
