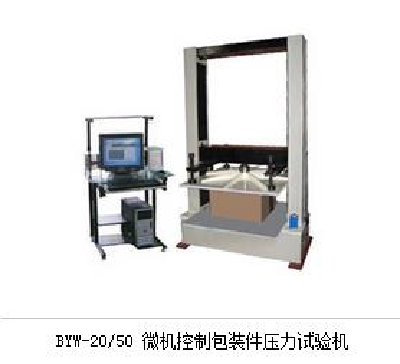

Microcomputer Controlled Package Parts Pressure Testing Machine BYW-20/50
Product Description:
It is suitable for all kinds of corrugated carton compressive strength test and stacking strength test, the performance parameters and technical indicators meet ISO2872< packaging - complete, filled transport packages - pressure test >, ISO2874< packaging - complete, filled transport packages - pressure testing machine for stacking test > and GB4857.4< transport packages Basic test pressure test method > and so on standard provisions.
Product details
Performance characteristics:
Instrument adopts high precision sensor, foreign high performance micro motor, combined with advanced measurement and control technology, to achieve precise control, precision measurement. Design the gentle mechanical transmission mechanism and multilevel security protection mechanism. Using microcomputer control, automatic processing of experimental data, print the report output.
Technical parameter:
1 speed range: 1-99mm/min
2 pressure measurement range: 0-20kN (or 0-50kN);
measurement accuracy: ± 1%
3 deformation measurement resolution: 0.1mm
4 clamp plate geometry size: upper clamp geometry dimension 1000* 1000mm
Upper pressure plate working maximum stroke 1500mm
The upper and lower plates between the surfaces of parallel degree≤ 1.0mm
5 display mode: microcomputer control, screen display or single chip microcomputer control, liquid crystal display
