Microcomputer Controlled Multifunction Ring Block Friction and Wear MMH Type

Microcomputer Controlled Multifunction Ring Block Friction and Wear MMH Type

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 15 Set/Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  860*740*1560mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  MMH Type
  • Weight: 800.000 kg

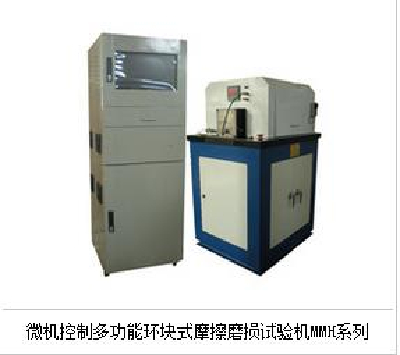

Microcomputer Controlled Multifunction Ring Block Friction and Wear MMH Type

 Product introduction
Microcomputer MMH-1 control multifunctional ring on block friction and wear testing machine in dry friction and oil lubricated

conditions to achieve rubber / metal / plastic material of friction and wear test; load, temperature, speed adjustment in time; real-time feedback on the friction coefficient, wear gap, temperature, rotate speed and so on signal acquisition; algorithm to wear test optimization.
Main structure and composition
- this machine is composed of three parts: host, control system and computer control system.
The host for the bedroom structure, composed of a base, spindle system, test chamber, the test force sensor, heater, temperature sensor and speed drive motor and other components.
The control cabinet is composed of a control cabinet, control panel, composed of electric control circuit and control system.
The computer system consists of host computer, display, printer, data acquisition card and interface circuit.
technical parameter

Name

Parameters or indicators

Note

Ring specimen size

Φ20-Φ100

sample material

Sample size

40*40*10mm

sample material

Maximum load

1000N

1 - 100%

Maximum speed

1500rpm

stepless speed regulation

Test speed

1~9999

Can be adjustable

Torque measurement

0~50N.m



The friction coefficient

µ=0~1



Sample temperature measurements

room temperature ~150



Dielectric slot

About 500ml

PVC material

  • Size:  860*740*1560mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  MMH Type
  • Weight: 800.000 kg
