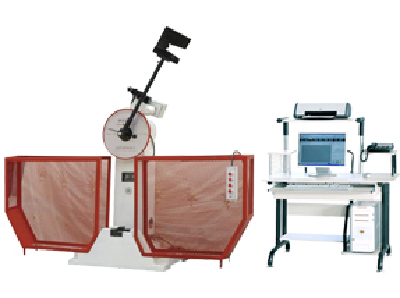

Microcomputer Controlled Impact Testing Machine JB-W
Product Description:
JB-W microcomputer control impact testing machine is a new generation of high-tech products developed by GB/T3808-2002 and GB/T229-2007. The impact testing machine is used to test the performance of metal materials under dynamic load. This machine is a pendulum type impact test, the PC controller with high reliability and high reliability of PLC controller is used to control the test process, and the impact of electric lift, computer measurement, calculation, screen display and can be printed, etc., the work efficiency is high, and the test precision is high. After the impact of the sample, the use of the remaining energy is automatically raised, prepared to do the next impact test. In the test chamber and a large number of test chamber and a large number of impact testing of the impact of the metallurgical, mechanical manufacturing and other departments more reflect the superiority of the. Can display the impact of material, impact toughness, pendulum angle and test average, print test report. Remote transmission of data can be realized according to user's requirements.
Product details
Main features:
Significant advantages of software and operating systems
1, the computer screen display and the disc at the same time display, data synchronization, equipped with a dual operating system, both by computer mouse operation, also can be used to control button box operation, mutual interference, flexible operation, high work efficiency.
2, for hundreds of root samples were continuous test, manual operation just as placing the specimen and pressing the action button, all the rest of the work by the test machine is finished automatically, reduce labor intensity, eliminate the artificial data recording error probability, especially for a large amount of mining and metallurgical test industry.
3, matching the special features of the pendulum impact test software, can automatically record the test results to the database for storage and search and other operations. Software running under WindowsXP, the user interface and the Windows style of the Chinese window system. The test operation of the test operation such as the pendulum, the back pin, the impact, and the pendulum can be done in the computer screen with the mouse input or the click.
Significant advantages of electrical control
1, import PLC-uP controller as the core of the electrical control system, using high precision photoelectric encoder as the angle sensor.
2, integrated circuit board, maintenance is more simple.
3, using the brush clutch to replace the old clutch, test, the pendulum automatically take the pendulum, the clutch is effective protection, reducing the system of clutch gear damage, prolong the system life.
Significant advantages of mechanical parts
1, the use of foreign advanced host structure and technology design, beautiful appearance, solid and durable, reasonable structure.
2, high rigidity of the pendulum rod to prevent the pendulum in the impact of the sample after the jitter.
3, the use of standard turbine reducer, high efficiency, completely avoid the transmission failure.
4, the structure of the module, reducing the processing and assembly process, the host of the accuracy greatly improved.
5, the main chassis and column integrated design of casting processing, high stability, high rigidity.
6, with the photoelectric proximity switch to replace the old mechanical limit switch, improve the stability of the device, the pre - yang angle is constant.
Significant advantages of security
Semi enclosed protective cover with high strength material will be included in the whole running track, while preventing the damage of the sample from being broken.
Main technical specifications:
impact energy | 300J | 500J |
Impact energy range | 0-150J/0-300J | 0-250J/0-500J |
angular resolution | ≤0.1 ° | ≤0.1 ° |
The value of every small lattice | 1J/2J
| 2.5J/5J
|
Pendulum force (impact constant) | 0 - 150J 0 - 300J M=80.3848N.m M=160.7695N.m | 0 - 250J 0 - 500J M=133.9746N.m M=267.9492N.m |
Pre blowing angle of pendulum | 150° | 150° |
The pendulum shaft rotation center to the point of impact (sample center distance) | 750mm
| 800 mm
|
impact velocity | 5.2m/s | 5.4m/s |
The sample bearing span | 40mm | 40mm |
Jaw fillet | R1 - 1.5mm | R1 - 1.5mm |
Impact blade fillet | R2 - 2.5mm | R2 - 2.5mm |
Sample size | 55 * 10 (7.5/5) * 10mm | 55 * 10 (7.5/5) * 10mm |
Test machine net weight | 450kg | 550Kg |
Test machine | 2124 *600 * 1340mm | 2300 * 600 * 1400mm |
Power Supply | Three phase four wire system 50Hz, 380V, 180W (main motor) |
