Microcomputer Controlled High Speed Ring Block Friction and Wear TestingMachine MRH-3G type

Microcomputer Controlled High Speed Ring Block Friction and Wear TestingMachine MRH-3G type

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 15 Set/Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1300 * 700 * 1340mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  MRH-3G
  • Weight: 800.000 kg

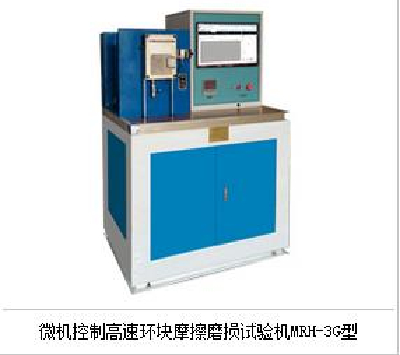

Microcomputer Controlled High Speed Ring Block Friction and Wear Testing Machine MRH-3G type



Product Description

MRH3G microcomputer control of high-speed ring block friction and wear testing machine with ring block friction form is mainly used

 to do all kinds of lubricant  in the test of sliding friction bearing capacity and friction condition, also can be used for all kinds of metal materials and nonmetal materials and material surface modification in the test of wear performance under the sliding friction, in order to study the lubricant mechanism and friction material compatibility etc.. Applies to colleges and universities, research institutes, enterprises and institutions to carry out research and quality testing and control, and so on.

Product description

Technical parameters:

l Maximum test force: 3000N

l Maximum determination of friction force: 300N

l Accuracy of friction force: ±2%

l Test force control mode:  the closed-loop control of stepping motor

l range of spindle speeds 100 ~2000r/min(5000r/min) can be adjusted.

l Speed control precision: ±10r/min

l Test oil temperature range: Room temperature ~ 100℃

l Test time control range: 10 ~ 9999s (min)

l Standard test ring size:Φ49.22 * 13.06mm

l Standard test block size:12.32 *19.05mm

l Dimensions : 1300 * 700 * 1340mm

l Machine weight :  800kg

  • Size:  1300 * 700 * 1340mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  MRH-3G
  • Weight: 800.000 kg
