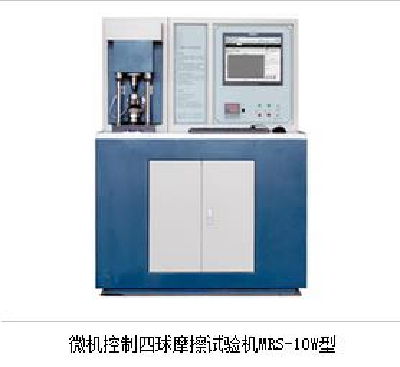

Microcomputer Controlled Four Ball Friction Testing Machine MRS-10W

Microcomputer Controlled Four Ball Friction Testing Machine MRS-10W

  • Min.Order Quantity: 1 Set
  • Supply Ability: 15 Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1200*810*1700 (mm)
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  MRS-10W
  • Weight: 800.000 kg

Microcomputer Controlled Four Ball Friction Testing Machine MRS-10W



Product Description:

 The machine is mainly in the form of sliding friction, in the high point of contact pressure to assess the carrying capacity of the lubricant, the maximum no card bite load PB, the sintering load PD, ZMZ, etc.. The machine can also carry on the long time wear performance test, the determination of the friction force, the calculated friction coefficient, the connection computer, records the test force - the friction force curve, the temperature - time curve, the friction - time curve. The machine is equipped with high precision measuring device, which can measure the size of the friction pair, or display, measure and record the computer screen of the friction pair.

Product details

Standard of the machine:

l Determination of extreme pressure properties of GB/T12583-98 lubricant (four ball machine method)

l Determination of bearing capacity of GB/T3142-82 (four ball method)

l Determination of anti - Wear Properties of SH/T0189-92 lubricating oils (four ball machine method)

l Determination of extreme pressure properties of SH/T0202-92 (four ball machine method)

l Determination of anti - wear property of SH/T0204-92 lubricating grease (four ball machine method)



Main technical index:

l Test force range (stepless adjustable):60N~10kN

l Relative error of test force:±1%

l The error of the test force is kept in the test force:±1%F.S

l Friction test range:0~300N

l Friction test error:± 3%

l Spindle speed range (stepless adjustable):200~2000r/min

l Spindle speed error:±5 r/min

l Friction pair temperature control range:Room temperature ~250℃

l Friction pair temperature control error:±2℃

l Test time control range:1 s ~999 h

l Spindle speed control range:1~99999999 r

l Test steel ball:Φ 12.7mm

l External dimensions:1200*810*1700 (mm)

l Weight:800kg

l Power:4KW

  • Size:  1200*810*1700 (mm)
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  MRS-10W
  • Weight: 800.000 kg
