- Size: 1100*600*860mm
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: EZ-10
- Weight: 2200.000 kg

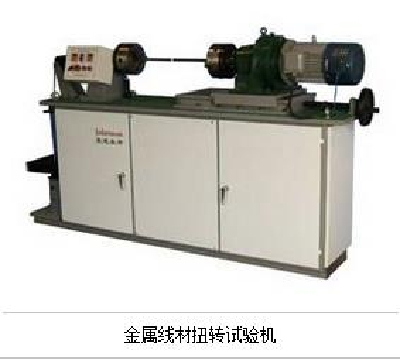

Metal Wire Torsion Testing Machine EZ-10
Product Description:
EZ-10 metal wire torsion testing machine, our company developed a digital counting new wire torsion testing machine, mainly used
for Phi - Phi 10 mm metal wire torsion test. For determination of metal wire in one-way or two-way torsion under plastic deformation
ability and display of wire surface and internal defects. Units for the production of wire rod and wire provides reliable means of measuring.The main technical parameters and working conditions
Two chucks concentricity < 0.4
The moving guide in full range of flatness is less than 0.2
The maximum distance of more than 550 two chuck
The rotation speed of 30 rpm±10% and 60 rpm ±10%
Jaw hardness HRC55-65
Weight tolerance ± 0.01%
The test machine noise is less than 70dB
The environment and working conditions
The temperature of 10-35 ℃
Placed on a steady basis, the level of less than 0.2 ‰
In the absence of vibration environment
No corrosive medium
The power of three-phase four wire 380V ± 10% 50HZ
- Size: 1100*600*860mm
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: EZ-10
- Weight: 2200.000 kg
