- Size: 1000*600*330mm
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: JWJ-10
- Weight: 210.000 kg

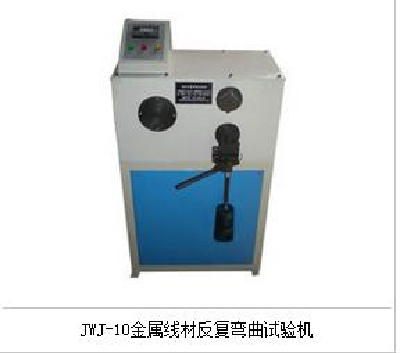

Metal Wire Repeated Bending Testing Machine JWJ-10
Product Description:
The testing machine, mainly used for metal wire repeated bending test, according to the standard of GB / T 238-2002. To test metal wire in repeated bending under plastic deformation properties and shows defects. Equipped with plate clamp holding device, you can also on a plate specimen for bending test. The machine is widely used in iron and steel, construction industry, and the steel wire rope, wire and cable production factory use. For in Φ 0.3 ~Φ10 metal wire, equipped with special fixture, and other specifications of the metal bending test can be done.
Main technical parameters:
Samples diameter | Φ 0.3 ~Φ10mm |
Samples length | 150-200mm |
Bending angle of degree | ±90° |
Bending speed | < 60r/min |
Counting degree | 0-9999 times |
Motor power | 1.1Kw |
Size | 1000*600*330mm |
Weight | About 210Kg |
- Size: 1000*600*330mm
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: JWJ-10
- Weight: 210.000 kg
