- Size: 280*1500*500
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: TLS-2
- Weight: 880.000 kg

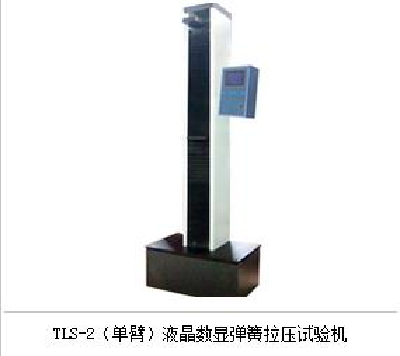

Liquid Crystal Digital Spring Tension Testing Machine TLS-2 (SingleArm)
Product description
Mainly used for testing all kinds of helical spring elastic components such as tensile and compressive strength, and print output records test data. Widely used in mechanical, chemical and other industrial enterprises, scientific research institutions, enterprises and institutions.
technical parameter
Main technical specification | TLS-2 |
Maximum test force | 500N 、 1KN 、 2KN |
Test force measuring range of the maximum test force | 1%-100% (full scale automatic switching, digital calibration) |
The accuracy of the | Better than ±1%(±5% is special choice) |
Displacement measurement (mm) | resolution 0.01 (0.001 for special selection) |
Maximum test space (mm) | 700 |
Beam moving speed (mm/min) | 0.2~500 |
Plate diameter phi (mm) | Φ200 |
Host size (mm) | 280*1500*500 |
Power supply voltage (V) | 220 |
The host to form | single arm type frame structure |
- Size: 280*1500*500
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: TLS-2
- Weight: 880.000 kg
