Impact Tester CDW-80X (stainless steel)

Impact Tester CDW-80X (stainless steel)

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 15 Set/Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  850 *465 *800mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  CDW-80X
  • Weight: 90.000 kg

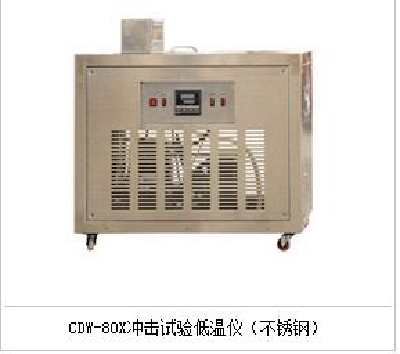

Impact Tester CDW-80X (stainless steel)

Product Description:

CDW - 80X type low temperature impact test instrument is the company according to GB/T229-2007 "metallic materials Charpy pendulum impact test method" (alternative GB/T229-1994 "metal Charpy Notch Impact Test Method") on the low temperature requirement of the equipment and the latest development of compressor refrigeration equipment. This equipment adopts the technology of the compound type compressor refrigeration, adopts the principle of heat balance and the way of the circulating stirring, to achieve the automatic cooling and constant temperature of the sample, which can meet the technical requirements specified by GB/T229-2007. The equipment is made of high quality stainless steel, corrosion resistance, high temperature oxidation resistance, surface free treatment, clean and easy to clean, easy to operate, high efficiency, low temperature impact test is the most ideal specimen cooling, constant temperature equipment. At the same time, it can also be used for other low temperature testing and testing work.

Product details

Main technical parameters:

1, Temperature range: +30℃~ 80℃( room temperature ≤ 25 ℃)

2, Test temperature and digital indication error:≤ 0.5 ℃

3, The speed of cooling: +30℃~0℃       about2.0℃/min

                     0℃~-20℃     about 1.5℃/min

                    -20℃--40℃     about1.0℃/min

                    -40℃--60℃     about0.7℃/min

                    -40℃--80℃     about0.5℃/min

4, The maximum size: 850 *465 *800mm

5, Effective working space: 120 * 120 * 80mm

6, The number of available samples: > 60 (impact specimen size: 10 * 10 * 55mm)

7, Digital display timer: 1 s ~99min , resolution 1 second

8, Digital display table resolution: 0.1℃

9, Cooling medium: ethanol or other non frozen liquid (self owned)

10, Weight: 90 kg

11, Working power: 220V ~ 240V, 50HZ, 3KW

Configure

1

l Two fully enclosed double compressor

l A plate type heat exchanger;

l Pipe material: all copper

l New environmentally friendly refrigerants: F134a

2 Net type stainless steel sample basket: three;

3: A special sample clamp

  • Size:  850 *465 *800mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  CDW-80X
  • Weight: 90.000 kg
