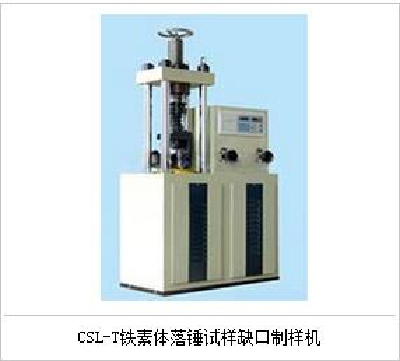

Ferrite Drop Specimen Preparation Testing Machine CSL-T
Product Description:
CSL-T ferrite drop test sample gap system prototype is based on the actual needs of customers in accordance with the GB/T8363-2007< ferrite DWTT method for steel "(instead of GB/T8363-1987) special equipment requirements for the gap and design with the domestic advanced level. This machine adopts hydraulic loading, forming a specimen preparation and operation stable.
Product details
Main technical parameters
Maximum pressure load | 2000KN |
Compressed space height | 100mm |
Opening angle | 45 ° ± 2 ° |
Opening depth | 5 ± 0.5mm |
Opening at the bottom | R0.025 |
Loading mode | Hydraulic loading |
Power | Three-phase five wire system 50HZ 380V |
Power | 3KW |
