- Size: 1200 * 870 * 1700mm
- Place of Origin: Jinan Shandong Province,China
- Brand Name: Jinan Puye Electrical and Mechanical technology
- Model Number: XDZ - 02 (04, 06)
- Weight: 2200.000 kg

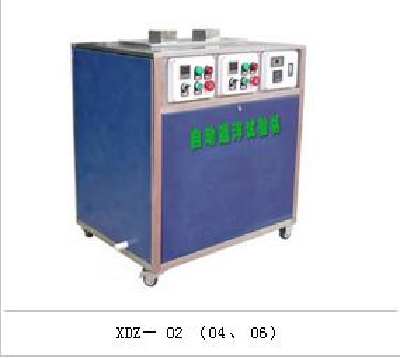

End Quenching Testing Machine XDZ - 02 (04, 06)
Product Description:
The new XDZ - 02 (04, 06) series of end quenching test machine is improved on the company's first generation product of DZ series based on the device requirements fully meet the GB/T225-2006 (end of experiment method of steel hardenability) specified in the standards. At the same time, in accordance with the requirements of the standard ASTM225-02 is suitable for high quality carbon. Structural steel, alloy structural steel, spring steel,
part of tool steel, bearing steel, end quenching experiment of low hardenability steel structure steel. XDZ series end quenching test machine compared with ordinary end quenching test machine, in the following measures, make it more high-tech, stability, advanced far the use of advanced generation products, but also more convenient for users. The use of digital quenching time advanced control system, can automatically start automatic water spray quenching end alarm throughout the working cycle and the reasonable layout design, Compact structure, easy to use, easy to maintain and repair.
Product details
Main features:
1 test machine from the frame, high and low water tank, water pump automatic circulating water system, water injection time setting system, nozzle baffle automatic quick opening device, water temperature control system and so on.
2 test machine (tank nozzle bracket frame panel shelf) adopts J304 stainless steel welding, water tank, nozzle and long-term water contact parts made of Cr18Ni9Ti stainless steel, stainless steel pump pump.
3 the control of the function of the water spray is used in the automatic control of the high sensitivity photoelectric sensor and the manual control of the two methods.
4 time control with high accuracy digital time relay, with the sound alarm function, to reach the set time after the water board will automatically shut off.
5 the water temperature control uses the compressor refrigeration and the heating rod to make the heat.
6 the installation of a variety of measuring instruments are easy to remove, for inspection.
7 installation of inlet and outlet, and with water filtration device. The tube diameter of 6 in charge; outlet pipe is 2 inches (- 50mm). In the preparation of external thread outlet.
8 the specimen holder is in a stable, and easy to adjust (equipped with a special center height adjuster).
Main technical parameters:
The main technical parameters | unit | date |
Working digit | individual | 2/3/4/6 |
Water nozzle diameter | mm | 12.5 |
Water injection time setting range of minutes | second | 1~99 |
The free height of the water column | mm | 65±5(can be adjustable) |
Tank volume | L | 75~150 |
Distance of water sample to faucet | mm | 12.5 |
Dimensions (length X width X height) and weight | mm/Kg | 2 type 800*750*860/90 3 type 800*750*860/95 4 type 1000*750*860/100 6 type 1300*75*860/140
|
Compressor cooling power | W | 300 |
Water temperature control range | ℃ | 20±5 |
Method for determination of quenching permeability:Two independent work, automatic control loop, semiconductor device temperature, quenching time control induction controller can automatically shut down the entire work cycle of the Watergate quenching, quenching time can be adjusted by the timer.
