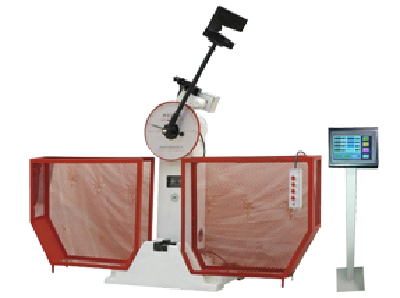

Digital Impact Testing Machine JB-S
Product Description:
JB-S type impact testing machine is used to measure the performance of metal material under dynamic load to resist impact, so as to
determine the nature of the material under dynamic loading, which is in accordance with GB/T229-2007 and GB/T3808-2002. The pendulum impact testing machine and the potential impact of before after the remaining potential difference is displayed in the dial on the way, get absorbed energy of the sample; PLC-up controller is used to control the test process, simple operation, high work efficiency, in the thrust specimen by residual energy is automatically measured by the sensor pendulum movement and thrust anti swing hammer blowing sample angle, automatic digital display (LCD) anti yang angle value and the pendulum made to the sample AK value function. The optional micro printer can print test data, including AK value, AK value, the impact toughness of three samples the average power (AK/3) and time and serial number etc.. Applicable to a large number of impact testing of metallurgy, machinery manufacturing, pressure vessel factory, etc.. Note: the optional configuration of micro printer.
Product details
Main features:
Significant advantages of software and operating systems
1, liquid crystal display and the degree of display, data synchronization, equipped with a dual display system, mutual interference, flexible operation, high efficiency.
2, for hundreds of root samples were continuous test, manual operation just as placing the specimen and pressing the action button, all the rest of the work by the test machine is finished automatically, reduce labor intensity, eliminate the artificial data recording error probability, especially for a large amount of mining and metallurgical test industry.
3, matching the special features of the pendulum impact testing software, intelligent, menu operation, take the pendulum, back pin, impact, and put the test operation can be in the box to click on the way to complete.
Significant advantages of electrical control
1, import PLC-uP controller as the core of the electrical control system, using high precision photoelectric encoder as the angle sensor.
2, integrated circuit board, maintenance is more simple.
3, using the brush clutch to replace the old clutch, test, the pendulum automatically take the pendulum, the clutch is effective protection, reducing the system of clutch gear damage, prolong the system life.
Significant advantages of mechanical parts
1, the use of foreign advanced host structure and technology design, beautiful appearance, solid and durable, reasonable structure.
2, high rigidity of the pendulum rod to prevent the pendulum in the impact of the sample after the jitter.
3, the use of standard turbine reducer, high efficiency, completely avoid the transmission failure.
4, the structure of the module, reducing the processing and assembly process, the host of the accuracy greatly improved.
5, the main chassis and column integrated design of casting processing, high stability, high rigidity.
6, with the photoelectric proximity switch to replace the old mechanical limit switch, improve the stability of the device, the pre - yang angle is constant.
Significant advantages of security
Semi enclosed protective cover with high strength material will be included in the whole running track, while preventing the damage of the sample from being broken.
Main technical specifications:
impact energy | 300J | 500J |
Impact energy range | 0-150J/0-300J | 0-250J/0-500J |
angular resolution | ≤0.1 ° | ≤0.1° |
The value of every small lattice | 1J/2J | 2.5J/5J
|
Pendulum force (impact constant) | 0 - 150J 0 - 300J M=160.7695N.m M=80.3848N.m | 0 - 250J 0 - 500J M=267.9492N.m M=133.9746N.m |
Pre blowing angle of pendulum | 150° | 150° |
The pendulum shaft rotation center to the point of impact (sample center distance) | 750mm
| 800 mm
|
impact velocity | 5.2m/s | 5.4m/s |
The sample bearing span | 40mm | 40mm |
Jaw fillet | R1 - 1.5mm | R1 - 1.5mm |
Impact blade fillet | R2 - 2.5mm | R2 - 2.5m |
Sample size | 55 x 10 (7.5/5) x 10mm | 55 x 10 (7.5/5) x 10mm |
Test machine net weight | 450kg | 550kg |
Test machine | 2124 * 600 * 1340mm | 2300 * 600 * 1400mm |
Power Supply | Three phase four wire system 50Hz, 380V, 180W (main motor) |
