- Size: 1300 *1000 *1500mm
- Place of Origin: Jinan Shandong Province,China
- Brand Name:
- Model Number: MRC-1A
- Weight: 800.000 kg

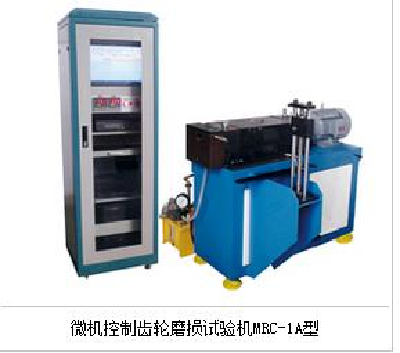

Computer Controlled Gear Wear Testing Machine MRC-1A
Product description
This testing machine is a new generation of friction and wear testing machine, which is based on the advanced technology of our company, and the new generation of PC control software is used in this research. The main working principle and technical parameters are the same as the CL-100 by using the method of closed energy flow and static loading. The test machine includes a drive gear box and a test gear box, with a loading torsion shaft and a rigid shaft connecting them, rigid shaft is connected in series with a torque sensor and a rigid loading clutch, gear box test has an electric heater for heating the specimen, is equipped with a temperature sensor in the one side of the box near the small gear, according to the set temperature to heat the sample testing machine by double speed motor of a 7.5kW (1450 and 2900r/min) driving test, torque load working gear and test gear between the automatic stepless loading system driven by the servo motor, can be in accordance with the requirements of test set value automatically applied. In the test process can be real-time display and drawing the torque curve, display test time, test temperature and test speed and other parameters. Application of tooth surface and tooth root in different materials FZG gear oil test, made gear test ability test, the fatigue strength of the tooth surface test, shear stability bearing capacity, suitable for GB/T 13672-92 "gear scuffing load capacity test method" SH/T 0306-1992 ", the determination of carrying capacity of lubricant" (CL-100 gear machine). GB/T 14229-1993 "gear contact fatigue strength test method" and "GB/T 14230-1993" test method of gear bending fatigue strength. In addition, according to the user's requirements to carry out the restructuring, such as: can be changed to fuel injection lubrication; increase lighting and observation, and so on.
Product details
Main technical parameters
1 Microcomputer control, automatic loading, real-time display on the computer interface and draw the torque value and curve of the test gear, show the test time and test set by the operator.
2 Maximum test torque:1000N.M
3 Loading mode: automatic stepless loading (no weight)
4 Test speed: 1450 r/min (2900r/min)
5 Standard test gear: modulus: 4.5
l tooth number: Max =24 Min=16
X large=-0.5 X X small=0.8532
l the meshing angle: 22 ° 26 '
l center distance: 91.5mm
l accuracy class: 5 degree
6 Test temperature: room temperature to 93℃
7 Main motor power: 7.5kw
8 Host appearance size: about 1300 *1000 *1500mm
