Building Material Steel Tube Bending Testing Machine GGW-60H

Building Material Steel Tube Bending Testing Machine GGW-60H

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 15 Set/Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1200*1000*912mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:  Jinan Puye Electrical and Mechanical technology
  • Model Number:  GGW-60H
  • Weight: 1500.000 kg

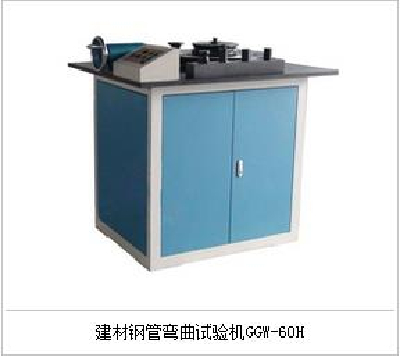

Building Material Steel Tube Bending Testing Machine GGW-60H
Product introduction
GGW60H "building materials steel pipe bending machine is a special equipment for plane bending test of metal pipe. The device is based on GB/T244-2008 ISO8491:1998 (E) new product development test method for bending metal tube. < > > for GB/T13793-2008< straight welded steel pipe, welded steel pipe for low pressure liquid delivery T3091-2008< GB/ > >, provisions of seamless steel pipe etc. in the standard GB/T8162-2008< metal structure of tube bending test method. With stogether can also complete the prescribed nominal GB/T28897-2012< steel plastic composite pipe > diameter not greater than 50mm (more than Phi 50mm) bending test method for steel pipe. The products are widely used in the detection unit, the metal tube factory and a pipeline enterprise, with bending performance test metal tube. GGW-60 type steel pipe bending testing machine with GW-50 type bending test machine is developed based on equipment products, reliable precision, convenient use, reliable service life limit. Long, is currently the most perfect bending test machine.

technical parameter

Project

GGW-60 H

Bending pipe diameter range (OD)

Φ 10~ Φ 60mm

Bending angle of the steel pipe

5°~180° arbitrary set

Working speed

2r/min

Roller center distance

165mm

W ork plate diameter

580mm

Motor power

1.5Kw

Random equipped with steel tube bending sets

Φ 10.2mm*6 61.2mm;

Φ 13.5mm*6 81mm;

Φ 17.2mm*6 103.2mm;

Φ 21.3mm*6 127.8mm;

Φ 26.9mm*6 161.4mm;

Φ 33.7mm*6≈202.2mm;

Φ 42.4mm*6 254.4mm;

Φ 48.3mm*6 289.8mm;

Φ 60.3mm*6 361.8mm

Roller radius

 R5, R6.8, R8.6, R10.7, R13.5, R16.9, R21, R24.2,, R30.2

Overall size

1200 * 1000 * 912mm

Weight

1500kg

Equipped with the following attachments can be specified in the GB/T28897-2012< steel plastic composite pipe > nominal diameter not greater than 50mm (less than or equal to Phi 50mm) steel pipe bend test method

The work plate (sets) diameter (8 times )

Φ15mm* 8 = 120mm

Φ 20 mm* 8 = 1 6 0mm

Φ 2 5mm* 8 = 2 0 0mm

Φ 32 mm* 8 = 256 mm

Φ 40 mm* 8 = 3 20mm

Φ 50 mm* 8 = 40 0mm

Roller radius

R7.5, R10, R13, R16, R20, R25

  • Size:  1200*1000*912mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:  Jinan Puye Electrical and Mechanical technology
  • Model Number:  GGW-60H
  • Weight: 1500.000 kg
