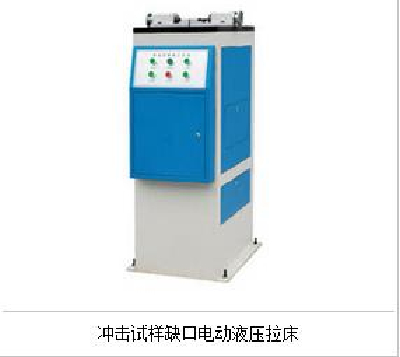

 Impact Specimen Notch Electric Hydraulic Broaching Machine

Impact Specimen Notch Electric Hydraulic Broaching Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 15 Sets per Month
  • Port: Qingdao Tianjin
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2008-06-18
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  650*300*1200mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  CLS-B/CLS-Y
  • Weight: 180.000 kg

The Impact Specimen Notch Electric Hydraulic Broaching Machine

Product Description:

 The impact specimen notch broaching machine is the optical curve grinder can processing only tool samples gap. Because of a molding processing principle, the processing of the gap of the same good. The broach broaching machine is made of W18Cr4V, high hardness, good wear resistance, each tool can process up to 2 more than one sample. Meet the GB/T229-2007 "metallic materials Charpy pendulum impact test method" (instead of GB2106-80) of the standard requirements, if change the structure and change of important components, which can meet the ASTME23-02a, EN10045, ISO148 and other foreign standards. One time can process two V or U type gap. For 8 seconds, the operation is very simple and reliable.

Standard specimen notch depth was 2mm ± 0.05, notch broaching machines using specimen positioning method, positioning of the sample length of the 55mm 1/2 center, if the length of 55mm is not the same, can be positioned at any time to adjust. Factory has been adjusted according to 55mm.

Product details

Technical parameters

Model

CSL-B/CLS-Y

Specimen notch shape

Standard:  Type V2 (deep 2 mm , 45 °± 2 ° r=0.25 mm  ±  0.025 mm)

Type U2 (deep2 mm  wide 2 mm deep   r=1 mm  ± 0.05 mm)

Note: (U3/U5mm special custom))

Processing sample size

10*10(7.5/5)*55mm

Cutting mode/lubrication system

Electronic hydraulic/lubrication oil automatic circulation ,oil quantity can be adjusted

Broach travel

34 0 ± 10mm

Broach material

W18Cr4V

Pull speed

2~3m/min(adjustable)

Electronic source

0.37Kw,380V

External dimensions

650*300*1200mm

Weight

180Kg

  • Size:  650*300*1200mm
  • Place of Origin:  Jinan Shandong Province,China
  • Brand Name:
  • Model Number:  CLS-B/CLS-Y
  • Weight: 180.000 kg
